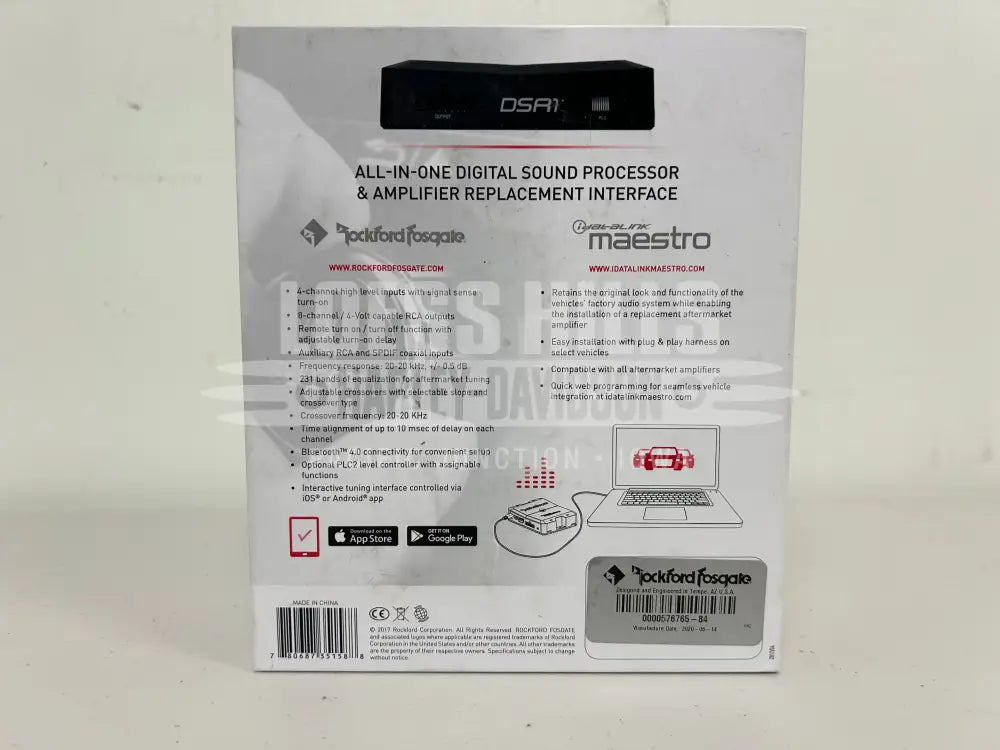

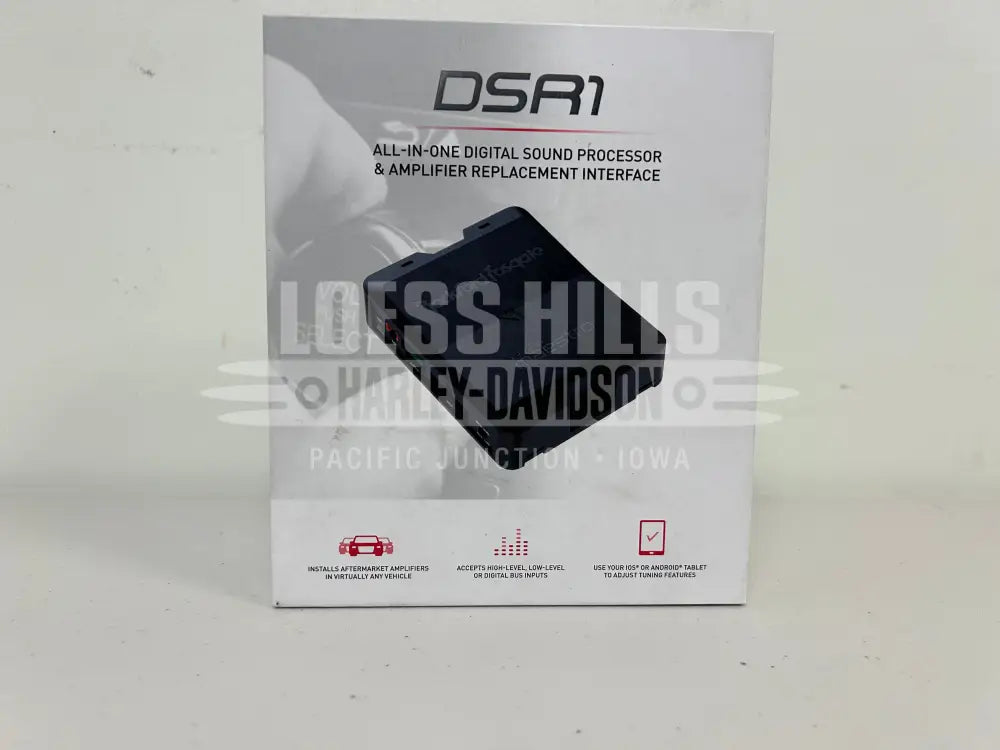

8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module DSR1

Co-developed with iDatalink Maestro, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using the proprietary Rockford Fosgate PerfectTune™ software.

The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.

After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.

FEATURES AT A GLANCE

• Four Channel Balanced Differential RCA Inputs
• Digital Signal Processing with Integrated Maestro CAN Interface
• 18 Pin Analog Input Harness
• Four Channel High Level Inputs with Signal Sense Turn On
• 245 Bands of Equalization for Aftermarket Tuning
• Adjustable crossovers with selectable slope
• Optional PLC2 Level Controller with Assignable Functions
• Designed for use with Select Maestro Vehicle T-Harnesses
• Micro USB Setup/Update Port
• 16 Pin Analog Output Harness
• Auxiliary RCA and SPDIF Coaxial Inputs
• CE and FCC Compliant
• 1 Year Warranty
• Bluetooth 4.0 Connectivity for convenient setup
• Interactive Tuning Interface Controlled via Android/ iOS APP
• Up 10msec of delay on each channel for Time Alignment
